IO-Link supported

• Connectable to various field networks via IO-Link Master.

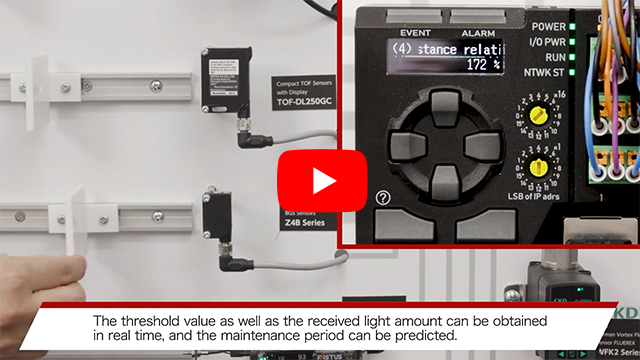

  Monitoring data of received light amount and output status can be communicated with PLC via IO-Link Master.
  In addition, sensitivity, output mode and timer settings can be made via the field network.

•

  ● Click here for details about IO-Link Master

 Industry standard size and IO-Link compatible amplifier built in photoelectric sensor

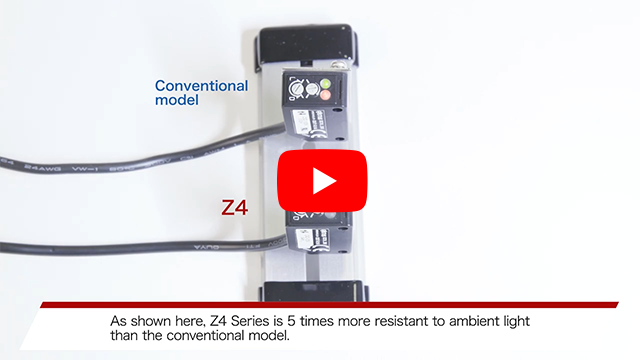

Enhanced ambient illuminance resistance

Compared to the conventional models, the ambient illuminance (sunlight) has been improved by approximately 5 times, making it less susceptible to ambient light, which can cause malfunctions.

Conventional models
Sunlight: 10,000 lx or less, Incandescent lamp: 3,000 lx or less
Z4B Series
Sunlight: 50,000 lx or less, Incandescent lamp: 5,000 lx or less

•  5 times more resistant to ambient light
         than conventional models

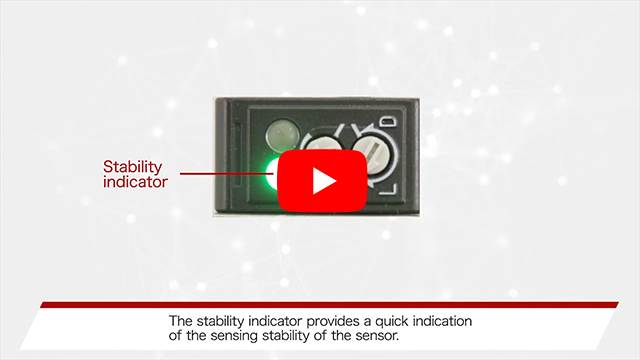

•  Stability indicator for quick status
         confirmation Standard sized, amplifier built






High power LED provides stable detection

• The Z4 Series through-beam type sensor has a 25 m sensing distance, the longest in its class.
  The margin for the receiving light quantity has been increased significantly, helping the sensor overcome interference from dust or other fine particles.

•
