Can be mounted anywhere

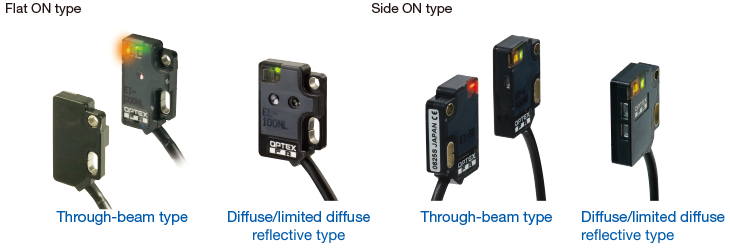

Both Flat ON and Side ON types are available

When there is limited space in width, choose Side ON type. When height is limited, choose Flat ON type. Selections can be made based on the situation.

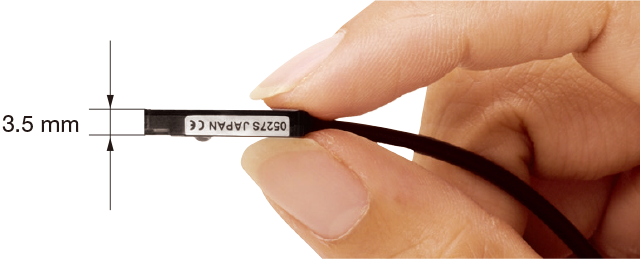

Ultra-thin type

Thickness of only 3.5 mm (Flat ON type)

• You can install this series into very narrow space.
  *Thickness of Side ON type is 5 mm.

•

Angled cable design

prevents cable stress

• The cable is angled coming out from the corner of the housing enabling it to be mounted in various positions without stress on the cable.

•

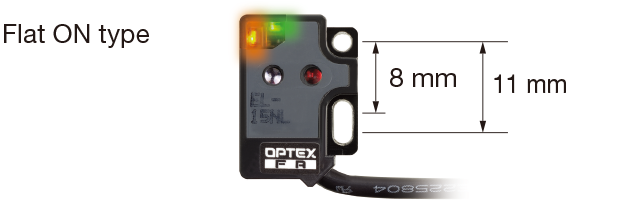

• Flexible mounting hole:

  Mounting hole pitch: 8 to 11 mm

  Flexible mounting is possible using holes whose pitch was altered during machining or holes that were already made.

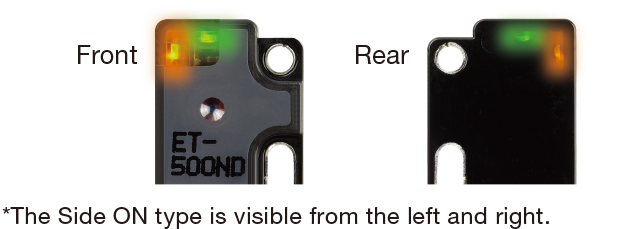

• Indicators visible even from back of the housing

  (Flat ON type)

  Equipped with a stability indicator (green) and output indicator (orange) to enable visibility from front and rear of sensors. When making light axis adjustments, indicators can be confirmed without being turned to the front every time.
