This controller handles up to four loops with a top sampling cycle of 10 ms.
In addition, the separable display allows for flexible positioning.
The compact data storage and health index* functions make it useful in ways that conventional controllers cannot match.
•Accuracy: ±0.1 % FS
•Control channels: 4 max.
•Standard features include Ethernet and serial RS-485 communications (Modbus™)
•Smart loader package available
Preventive Maintenance of Manufacturing Equipment
Health index — Azbil’s proprietary parameter
Compact data storage (CDS)

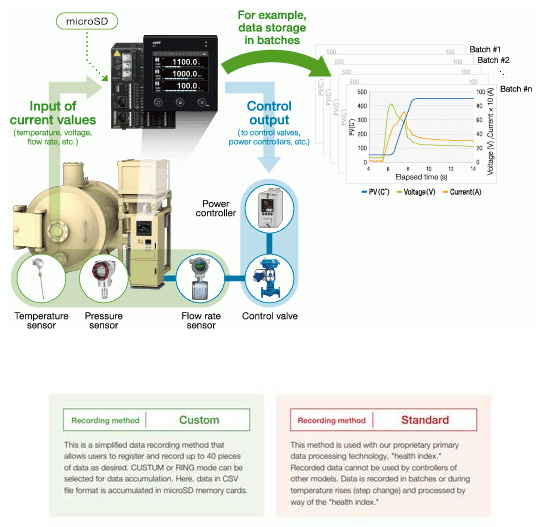

Compact data storage is Azbil's new technology for effective data recording. It can record necessary data at fixed intervals and also record just the required pieces of data, thus allowing controllers to achieve data processing and management at FA control layer.
Process diagnosis (Health index function)
Loop characteristics are quantified using process data for control. Loop soundness is monitored to detect status changes. Quantified data is provided for edge computing that in turn contributes to promotion of IoT services.

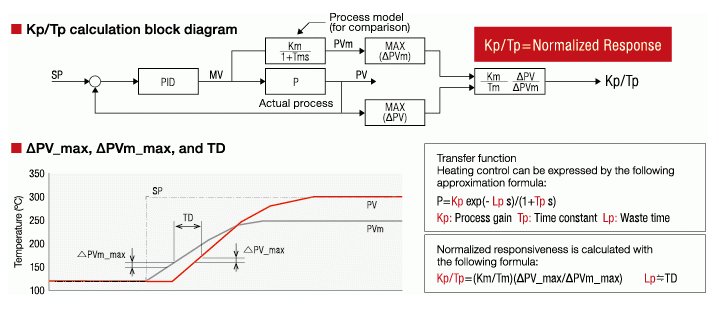

By comparing the maximum amount of process change in a transient response (delta PV_max) and the same value for the model installed in the controller (delta PVm_max) , the value of “Process gain (Kp) ÷ time constant (Tp)” is calculated as the health index (control loop quality). The health index is calculated while CDS is activated, and is then stored on the microSD memory card. (Depending on processing conditions, calculation may sometimes not be possible.)

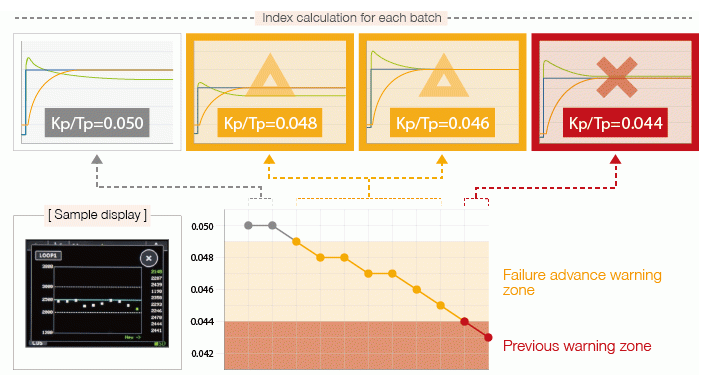

The health index is an approximation of control loop condition. By storing data in batches and comparing it with initial values, equipment status changes can be detected before a failure occurs.
Detection sample of furnace oven
Change the retio of air and gas
Degradation of thermal insulation material
Detection of furnace oven’s condition
Detection of an exhaust condition
Ethernet communication function
Compact data storage function
The QVGA LCD displays a greater amount of information than previous models

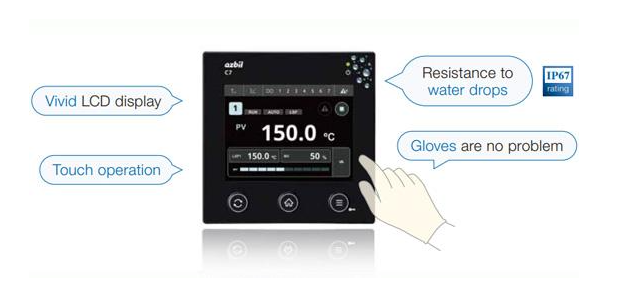

Intuitive operation on a touch panel

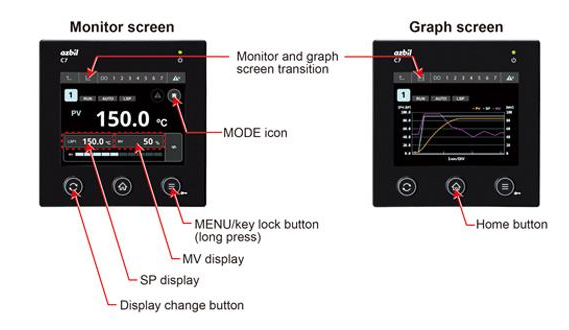

3 Physical Keys for Easy-To-Understand Operation
Selectable home screen

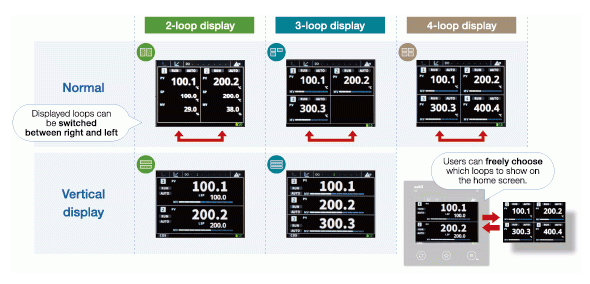

One controller handles up to 4 loops. The C7G/C7S break the single-loop controller mold by allowing users to select the required number of loops. The loops that are displayed on the screen can also be changed through home screen settings.
Clarity at a glance-set for full name display of C7G/C7S alarms and settings

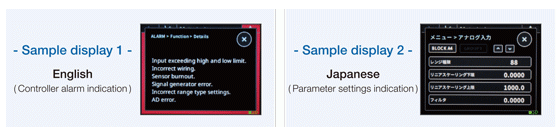

Parameter settings and gauge alarms can be displayed by name rather than by code number, reducing the need to refer to the manual during setup and alarm handling. Both English and 機械翻訳 are available, and can be seamlessly switched during operation.
Easily identify the cause of alarms

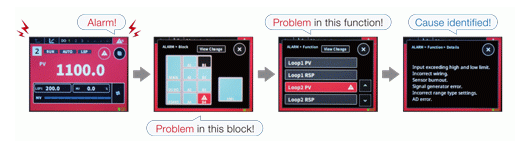

The hierarchical design of the alarm screen allows easy identification of the location and cause of generated alarms.
Graphs are helpful in trial-run adjustments

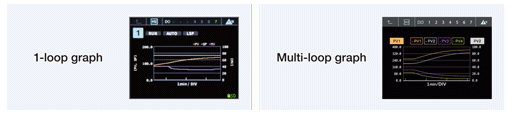

Control status can be conveniently checked on a graph while making trial-run adjustments.
