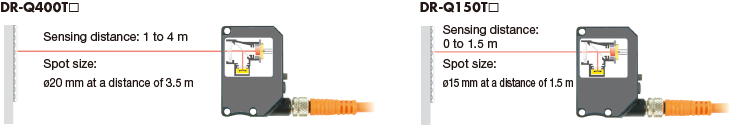

Sensing distance: Max. 4 m

Achieves long range transparent object detection

A sensing distance of 4 m, the longest class in transparent object sensors, has been realized. Additionally, by employing a red laser (Class 2) for the light source as well as a coaxial reflection structure, high-accuracy position detection is possible.

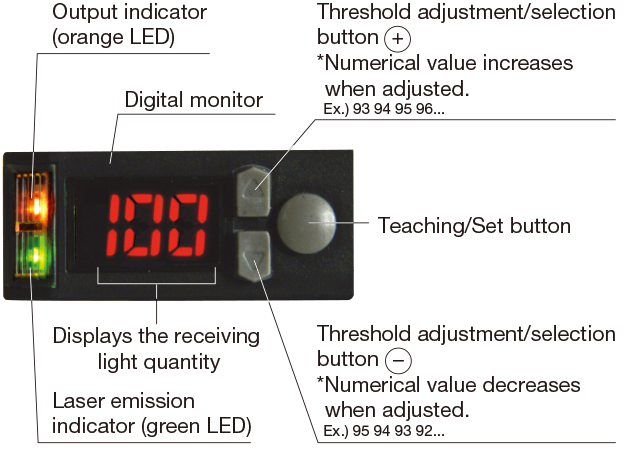

• Digital adjustment function

  Adjustment while watching values possible

  Simple settings and fine adjustments are possible. Thanks to the teaching method, setting is possible by simply pressing a button. There are also buttons for fine adjustments, making it possible to configure sensitivity settings to the desired level while viewing the digital display.



  High utility

  Convenient functions tailored to fit the application

  ◯ External teaching is possible
  ◯ Built-in ON / OFF / One-shot delay functions
  ◯ Enables detection of transparent containers filled with transparent liquid causing a lens effect

• Built-in ASC (Automatic Sensitivity Correction) function

  Contamination resistant

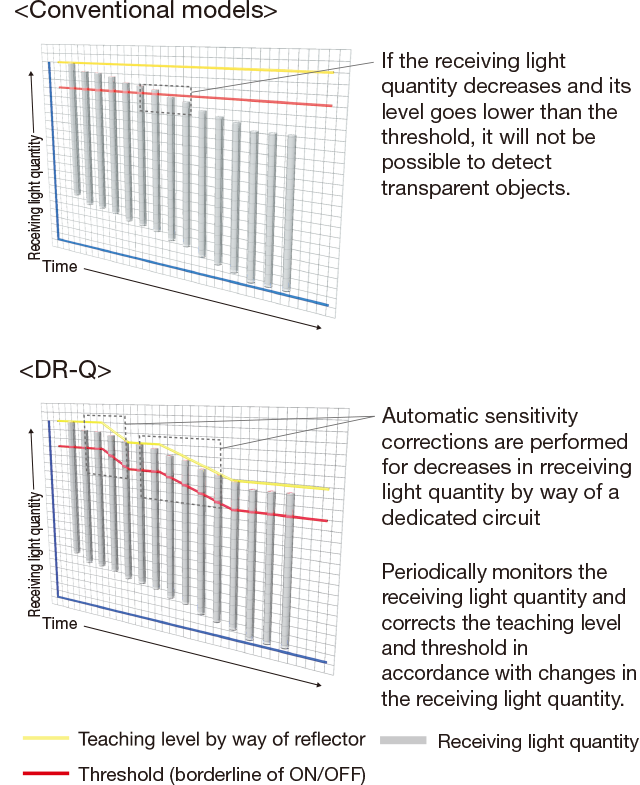

  The ASC function automatically corrects threshold values to reduce the amount of light generated when dust, water, vapor, etc., on site adheres to the reflector or lens, thereby maintaining optimum sensitivity over long periods of time. (The diagram below shows a decrease in the amount of light received due to dust and steam in the atmosphere)
