Line-up

Standard, high-speed, mark detection and water detection type Fiber-Optic Sensors are available to meet various applications. Cable types and connector types are available for all models.

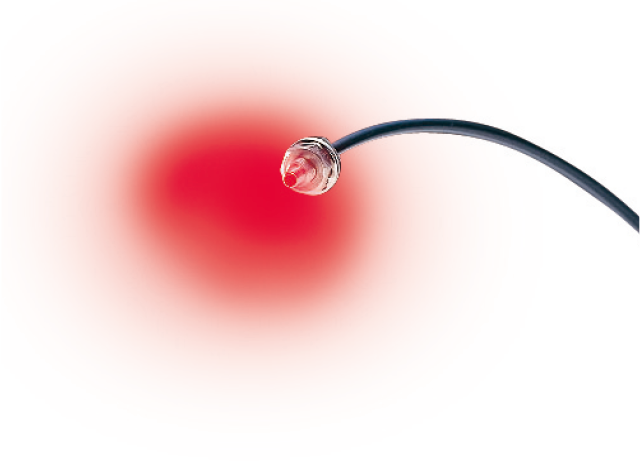

• Standard type

  BRF-N/-CN/-P/-CP



  Optimal long range detection

• High-speed type

  BRF-HN/-CHN/-HP/-CHP



  Detects up to 10,000 objects per second with a fast response of 50μs.

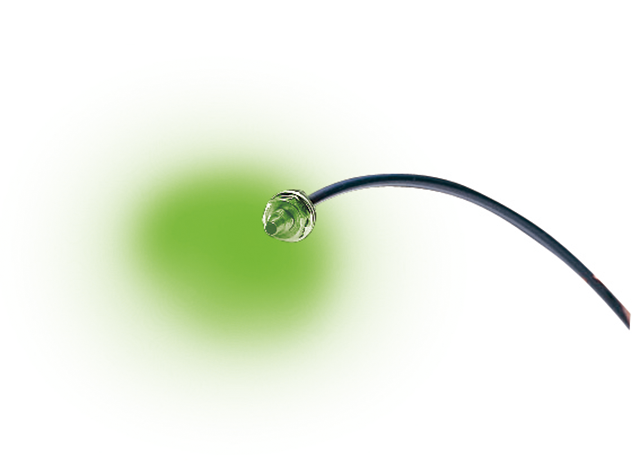

• Mark detection type

  BGF-N/-CN/-P/-CP



  Subtle two-color discrimination is possible with the green LED.

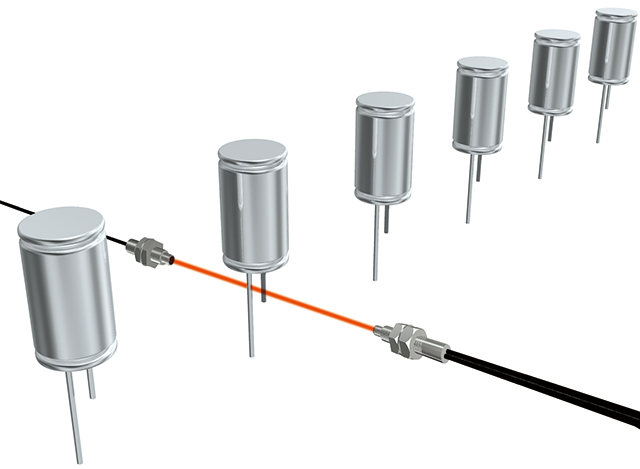

• Through-beam type Fiber-Optic Cables
  NF-TW01

  Sensing distance max. 100 mm

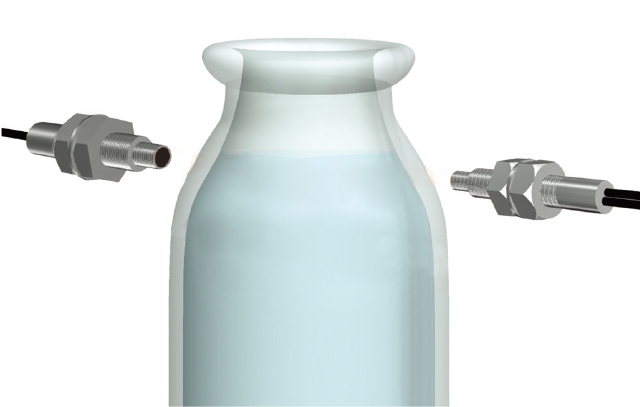

  Detection of chemicals in transparent bottles

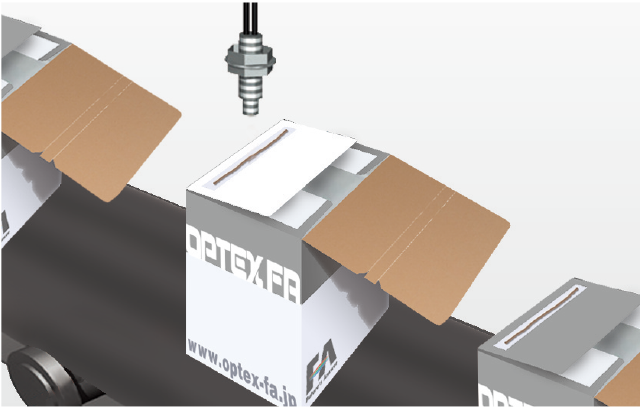

• Diffuse type Fiber-Optic Cables
  NF-DW01

  Sensing distance max. 30 mm



  Detection of adhesives

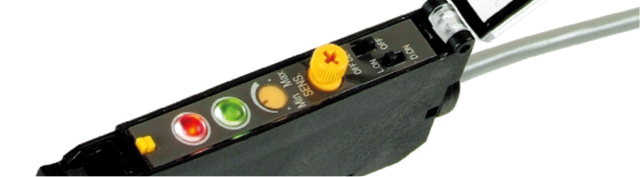

10-turn potentiometer for sensitivity adjustment that can be turned using fingers

• Features a 10-turn potentiometer for sensitivity adjustments that enables adjustments to be made easily, even when fine adjustments are necessary. Also, because it can be turned by fingers, there is no need to concern about screw threads will become damaged by screwdrivers, causing sensitivity adjustments to no longer be possible.

•

• Large indicators

  Equipped with large indicators to enable easy confirmation of sensor operation status, even from far away.



• Cost-effective line-up

  Highly water resistant: IP66

  Cleared the IP66 requirements Fiber-Optic Sensors. Expands the possibilities in which sensors can be used in wet environments.
