Featuring superb linearity of ±0.05% of F.S.*
Can be used to perform stable measurement of various types of workpieces.

•

•

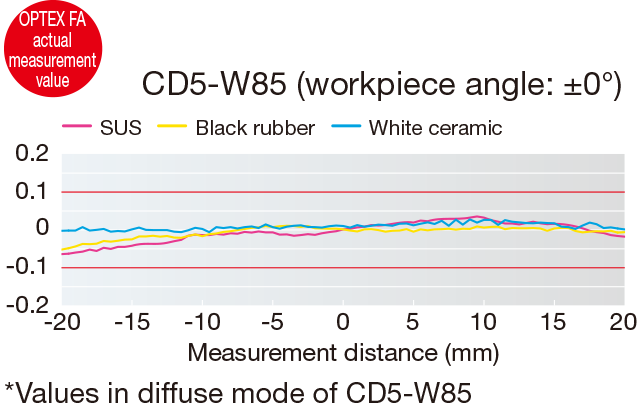

  Highest-in-class repeat accuracy and linearity

  Superb linearity of ±0.05% F.S.* (catalog specifications, target workpiece: white ceramic). CD5 Series also can be used on materials for which stable measurement can be difficult such as SUS and black rubber, and provide a smooth linearity curve.

•

•

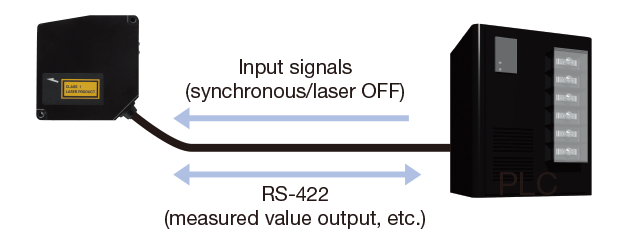

  Measurement is possible using only the sensor head

  The sensor head features a built-in displacement measurement function. Measured value output by way of RS-422, as well as laser OFF input/ synchronous input can be controlled without use of an amplifier unit.

•

•

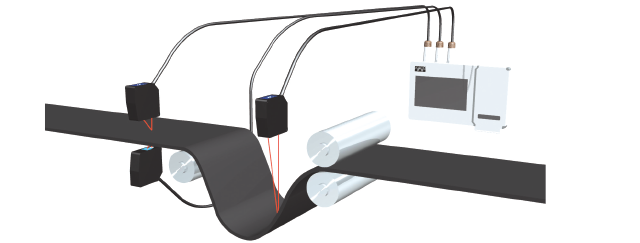

  3 CH multi-calculation is possible!

  Up to three sensor heads can be connected to one　amplifier unit.
  By sending measurement data at high speeds, multi-point measurements such as for thickness, height difference and parallelism can be performed using one amplifier unit.
